XD1+ Personal Dust Monitor

£986.00 (Ex. VAT/GST)

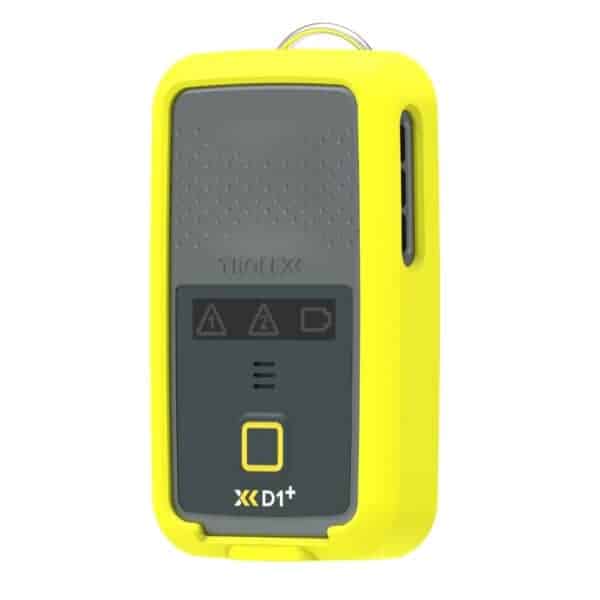

The XD1+ Personal Dust Monitor is the latest innovation in personal particulate monitoring from Trolex.

At only 170g, the XD1+ is small and lightweight enough to give the wearer freedom to do their job without interruption whilst ensuring they are protected from dangerous levels of dust. With the XD1+ being 1/4 of the size of any other dust monitor on the market, this really is personal.

  • 1/4 the size of other dust monitors and weighs only 170g
  • Super simple to use – simply switch it on and secure it in place. The XD1+ will do the rest
  • Instant alarms for customisable STEL and TWA measurements for dust sizes of PM1, PM2.5, PM4.25 and PM10
  • Bluetooth connectivity means you can view all the live data in real-time using the BreatheMobile app.
SKU: TX8061.00.01 Category:

£986.00 (Ex. VAT/GST)

Website prices are in GBP. You can change currency in the cart or checkout before purchase.

  • Software | License-free software included
  • Shipping | Worldwide

We accept the following payments:

Payments accepted

Description

The XD1+ Personal Dust Monitor is the latest innovation in personal particulate monitoring from Trolex.

At only 170g, the XD1+ is small and lightweight enough to give the wearer freedom to do their job without interruption whilst ensuring they are protected from dangerous levels of dust. With the XD1+ being 1/4 of the size of any other dust monitor on the market, this really is personal.

  • 1/4 of the size of other dust monitors and weighs only 170g
  • Super simple to use – simply switch it on and secure it in place. The XD1+ will do the rest
  • Instant alarms for customisable STEL and TWA measurements for dust sizes of PM1, PM2.5, PM4.25 and PM10
  • Bluetooth connectivity means you can view all the live data in real-time using the BreatheMobile app.



Dust monitoring just got personal

XD1+ย is a simple, straightforward and highly accurate dust monitor with just a single button; simply switch it on, secure it in place and off you go. With real-time dust monitoring, XD1+ย changes the way we fight respiratory disease in the workplace.



This time itโ€™s personal

XD1+ย is small and lightweight enough to give you the freedom to do your job whilst consistently monitoring the levels of dangerous dust. At only 170 g, XD1+ย is ยผ of the size of other dust monitors on the market, remaining truly wearable, with dimensions of only 112 mm x 64 mm x 25 mm. Personal, real-time monitoring to always protect your workers.



Take back control. Save lives.

XD1+ย gives you instant alarms for fully customisable STEL and TWA measurements for dust sizes of PM1, PM2.5, PM4.25 and PM10. With our accurate and real-time dust monitoring you can take back control to prioritise worker safety, make effective business decisions and save lives.



End the guesswork

Withย BreatheMOBILEย you can access your dust monitoring data all the time. RFID tagging allows you to allocate your XD1+ย device wherever you are and with bluetooth connectivity, you can view all the live data, all the time, in real-time. When it comes to making a difference, real-time information is king.

Video

Instructions

The section below outlines the basic operation of the XD1+ Personal Dust Monitor. For full instructions, please refer to the user manual.



Charging the XD1+

Connect the XD1+ to a USB wall charger or to your PC or laptop using the supplied cable. Allow the device to fully charge before use. The battery indicator flashes green when charging is complete.



Setting up the XD1+

Install the BreatheLITE software on your PC to set custom parameters and review data. You can also download the BreatheMOBILE app from the Apple or Google Play stores to view live readings on your phone. When connected to BreatheLITE, each XD1+ is automatically recognised.



Mounting the XD1+

Attach the XD1+ to clothing or PPE using the provided alligator clip. Position the device near the chest or collar area so it captures accurate exposure levels.



Taking a measurement

Switch on the XD1+ by holding the yellow square button. The device will begin monitoring automatically. The device continuously measures dust concentrations and automatically records exposure data. If your set thresholds are exceeded, the XD1+ provides real-time alerts, including visual indicators, audio alarms and vibration signals.



Reviewing and downloading data

Connect the XD1+ to your PC via USB to review and download exposure data in BreatheLITE. Alternatively, use the BreatheMOBILE app to view measurements and alerts in real-time. The device stores up to 1 GB of data, providing approximately six months of logging at 10-second intervals.

Applications

The XD1+ Personal Dust Monitor is designed for continuous, real-time measurement of personal dust exposure in workplace environments.



Dust Monitoring

The XD1+ provides real-time personal dust monitoring for workers in environments where airborne dust poses a health risk. It helps identify when exposure limits are exceeded and shows whether controls, such as ventilation, dust suppression, PPE, or job rotation, are working across industries such as construction, quarrying, manufacturing, and food production.

Specifications

Sensing technology
OPC light-scatter photometer

Particulate measurement
0.1 ยตm to 10 ยตm (PM1, PM2.5, PM4.25, PM10)

Particle count accuracy
ยฑ10%

Operating temperature
Optimum performance
10 ยฐC to 40 ยฐC

Maximum performance
-10 ยฐC to 50 ยฐC

Humidity
Optimum performance
20% – 80% RH, non-condensing

Maximum performance
0% – 95% RH, non-condensing

Housing material
PC/ABS polymer housing

Ingress protection
Main enclosure: IPX4
Particle flow path: IP4X

Weight
170 g

Data connections
USB-C connector (charging and data transfer)
Bluetooth LE 5.3

Connectivity
BreatheLITE PC application
BreatheMOBILE application

User options
STEL and TWA alarm setpoints
Latching alarms
Particulate measurement

Operating range
Up to ~150 mg/mยณ

Particulate density range
0.8 g/ml to 8.0 g/ml (default 1.65 g/ml)

Units of measurement
ยตg/mยณ โ€“ Logged on device
ยตg/mยณ or mg/mยณ โ€“ BreatheLITE application

Sampling interval
Custom 1 second intervals (default 10 seconds)

Flow rate
0.1 L/min

User interface/alarms
Visual icon illumination (STEL, TWA, battery indication)
Audible (85 dB)
Vibration alert

Self-test
Sensor hardware, circuitry and battery test on activation
โ€˜Push to testโ€™ during operation

Response test
Custom particle compliance test

Battery capacity
8.2 Wh lithium ion

Battery run time
16 hours (full health at ambient)

Charging temperature limits
0 ยฐC to 45 ยฐC

Charging time
0% to 90%: 2 hours
0% to 100%: 3 hours

Max. charge current
1.5 A

Memory capacity
1 GB (6 months data logging at 10 second intervals)

Product fixing/body mounting
Personal mounting clip, Klick Fast stud options

Certification
UKCA and CE compliant

Downloads

Datasheet (pdf, 1463KB)
English
User Manual (pdf, 212KB)
English
