Name: Acoustic Calibrator for Sound Level Meters
Brand: Pulsar Instruments
Availability: InStock

Acoustic Calibrator

(Ex. VAT/GST)

The Model 105 and Model 106 acoustic calibrators provide a reliable 1 kHz reference tone at 94 dB for field calibrating sound level meters and noise dosimeters, ensuring your results comply with occupational noise regulations.

Standard 1 kHz tone at 94 dB for field calibration
Class 1 and Class 2 models available
Automatic correction for environmental conditions
Fully compliant with IEC 60942:2003
Long battery life and auto power-off

Description

Field calibration is essential for accurate and legally compliant noise measurements. An acoustic calibrator allows you to check your sound level meter or noise dosimeter before and after each measurement, ensuring your results comply with occupational noise regulations.

Standard 1 kHz reference tone

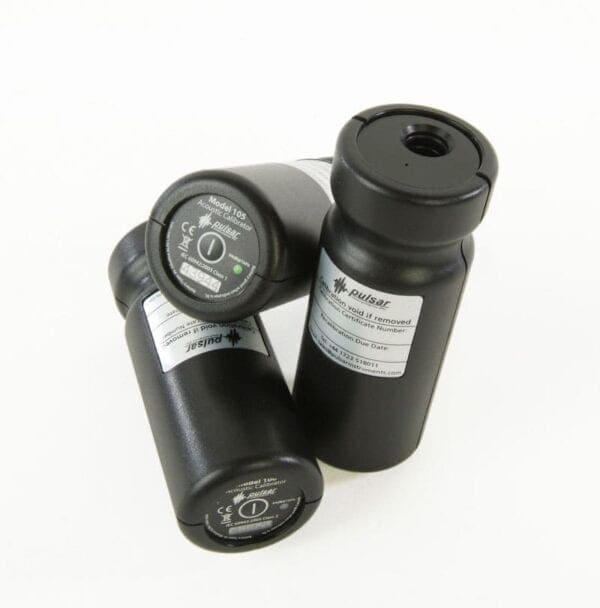

The Model 105 (Class 1) and Model 106 (Class 2) acoustic calibrators produce a standardised 1 kHz tone at 94 dB. Built-in sensors automatically correct for temperature, humidity, barometric pressure and battery condition, helping maintain accuracy in a variety of conditions.

Available as a Class 1 or Class 2 calibrator

Both models are easy to operate and fully comply with IEC 60942:2003. The Model 105 is suitable for Class 1 sound level meters, while the Model 106 is designed for Class 2 instruments typically used in occupational noise assessments.

Durable and easy to use

Each calibrator is compact, durable and easy to use, with a long-life 9-volt battery and an automatic power-off feature to prolong battery life.

Product Options

The Acoustic Calibrator is available as a Class 1 or Class 2 model, compliant with IEC 60942:2003. For accurate calibration, the calibrator should match the Class of the sound level meter being calibrated.

Acoustic Calibrator

Acoustic Calibrator
PP3 Battery
Calibration certificate

The Acoustic Calibrator includes a standard 1-year warranty, which can be extended to 10 years when the instrument is returned to Pulsar Instruments for annual calibration.

Instructions

The section below outlines the basic operation of the Acoustic Calibrator. For full instructions on calibrating specific equipment, please refer to the relevant equipment user manual.

Using the Acoustic Calibrator

Carefully fit the calibrator over the microphone capsule, ensuring a firm connection. When switched on, the Acoustic Calibrator emits a 1 kHz tone for acoustic field calibration. Press the power button once to produce a 94 dB tone, or press it a second time to switch off the device.

Specifications

EU CE classes
EN 50081-1, EN 50082-1 & EN 61010-1

Pollution category
Portable equipment (2)

Sound Pressure
94dB that is a pressure of 1Pascal

Pressure tolerance
Model 105 0.2 dB : Model 106 0.4dB

Frequency
1kHz (1000 cps) +/- 0.2%

Distortion
<1% THD

Microphone diameter
Nominal half inch to IEC 1094-4
Quarter inch adapter also available

Battery
One 9 volt, IEC type 6F22, or PP3

Physical dimensions
138mm long and 47 mm diameter

Weight
225 gm with alkaline battery

Operating control
None or 30 seconds

Weight
Push button Start and Timer over-ride

Indicator
Green LED shows operation with good battery

Downloads

Datasheet (pdf, 812KB)

English

Download

Datasheet (pdf, 152KB)

French

Download

User Manual (pdf, 137KB)

English

Download
