Description
The NoiseBadge is a durable, shoulder-mounted personal noise dosimeter designed for monitoring an individual’s daily noise exposure in demanding environments. Fully compliant with IEC 61252:1993 and ANSI S1.25:1991, the NoiseBadge captures all essential occupational noise parameters, including LAeq, LEP,d (LEX,8h), LCPeak, TWA and % Dose over a full working day. With no buttons, screens or cables, it cannot be adjusted or tampered with during use, ensuring reliable and accurate measurements.
Suitable for occupational noise exposure assessments worldwide
The NoiseBadge is ideal for monitoring an individual’s noise exposure throughout the day, particularly where employees move between different tasks or locations. It covers a dynamic measurement range of 70 dB(A) to 130 dB(A) and is suitable for occupational noise assessments across a wide range of industries, including construction, demolition and heavy manufacturing.
To meet regulations worldwide, the NoiseBadge supports exchange rates of 3 dB, 4 dB, or 5 dB. It measures on two channels simultaneously, with channel 1 configurable and channel 2 fixed to ISO’s 3 dB measurements, allowing compliance with different international noise regulations in a single measurement.
Built for durability and daily use

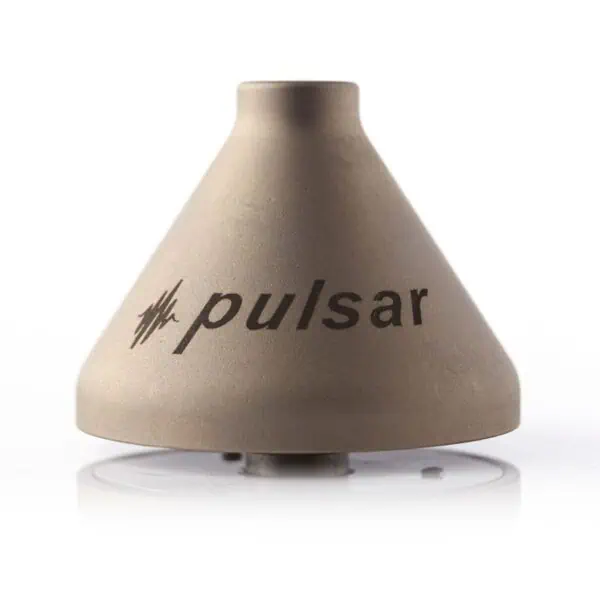

Constructed with a robust metal casing, the NoiseBadge meets the demands of environments where it is prone to frequent knocks or drops. Its lightweight, cable-free design makes it comfortable to wear on the shoulder using the provided leather mounting strap, and with a rechargeable battery providing up to 20 hours of operation, the NoiseBadge can run for a full shift.
Fast setup and data download with the Reader Unit
The NoiseBadge requires a Reader Unit for configuration, calibration and data download. All settings are controlled through the Reader rather than on the dosimeter itself, meaning the badges remain tamper-proof while in use. The Reader allows multiple NoiseBadges to be activated at the start of a shift and stopped again at the end. Measurements can also be viewed directly on the Reader’s clear backlit LCD display before downloading to AnalyzerPlus.
Straightforward reporting with AnalyzerPlus
Once data is downloaded via the Reader Unit, measurements can be viewed, analysed and reported on using our licence-free AnalyzerPlus software. Time History data shows how exposure changes throughout the day, helping you identify high-risk activities or noise sources.
Intrinsically safe option available
For hazardous or potentially explosive atmospheres, the Intrinsically Safe NoiseBadge provides a certified solution for use in mining, petrochemical facilities and other environments where combustion risks must be carefully managed. It measures the same occupational noise parameters as the NoiseBadge, allowing you to choose the dosimeter best suited to your working environment.
Product Options
The NoiseBadge can be purchased on its own or as a complete kit that includes the dosimeter, a reader unit, a charging dock, and a carrying case.
NoiseBadge
- NoiseBadge Noise Dosimeter
- Leather Shoulder Strap
- Mounting Disc
- Calibration certificates
- AnalyzerPlus noise analysis software
NoiseBadge Kit
Our NoiseBadge kits include all the essential accessories supplied in a carrying case.
- NoiseBadge Noise Dosimeter
- Reader Unit
- Charging Dock
- Carrying case
- Leather Shoulder Strap
- Mounting Disc
- Calibration certificates
- USB download cable
- AnalyzerPlus noise analysis software
The NoiseBadge Noise Dosimeter, Reader Unit and Charging Dock include a standard 1-year warranty, which can be extended to 7 years when the instruments are returned to Pulsar Instruments for annual calibration.
Instructions
The sections below outline the basic operation of the NoiseBadge Noise Dosimeter. For full instructions, please refer to the user manual.
Powering and Charging
Place each NoiseBadge on the charging dock until the green light shows solid. A full charge takes approximately 3 hours and provides around 20 hours of continuous use. The badge can remain on trickle charge when not in use.
Resetting and Calibrating the NoiseBadge
Before and after each measurement, place the badge into the calibrator cavity of the Reader unit, ensuring the infrared window on the NoiseBadge aligns with the window on top of the Reader unit. Press Reset to clear previous data, load the current configuration, and update the date and time. Then press Cal to automatically calibrate the dosimeter and apply any necessary adjustment.
Attaching the NoiseBadge

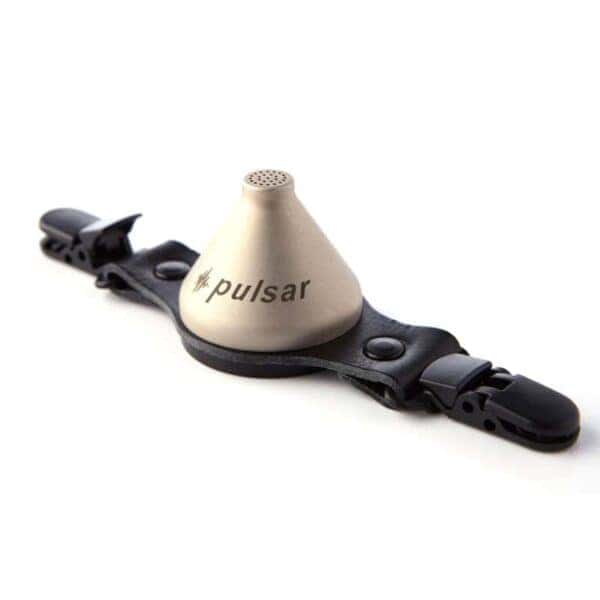

After calibration, attach the NoiseBadge securely to the worker’s shoulder using the supplied mounting strap. The microphone should sit within 10 cm of the ear. Ensure the badge is stable and not rubbing against clothing, as this can affect readings.
Starting a Measurement

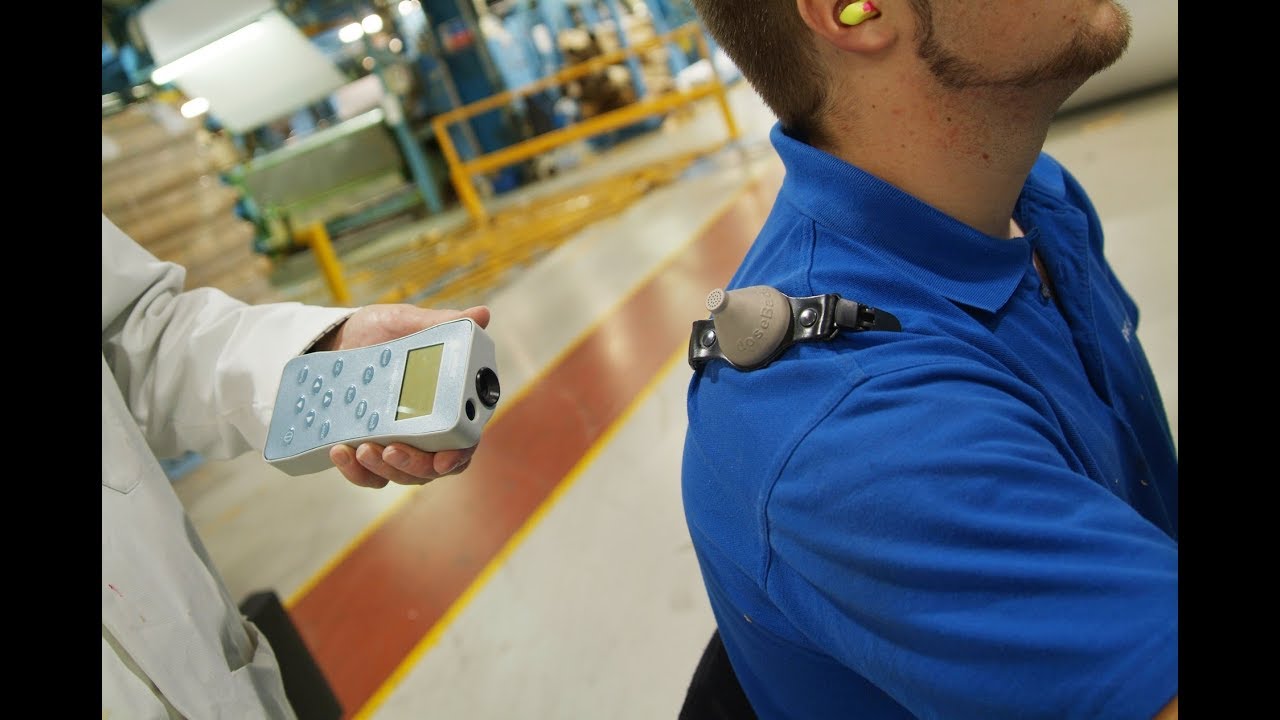

Aim the Reader at the NoiseBadge, ensuring the infrared windows are aligned, and press Run on the Reader. The indicator light on the badge will start flashing to confirm it is actively measuring. The badge will start measuring automatically, recording all key parameters including LAeq, LEP,d, % Dose, and TWA throughout the working period.
Stopping a Measurement
At the end of the shift, aim the Reader at the NoiseBadge, ensuring the infrared windows are aligned, and press Stop on the Reader to end the measurement. The indicator light on the badge will stop flashing to show that the measurement has stopped.
Removing the NoiseBadge
After stopping a measurement, remove the badge carefully and check that the indicator light has stopped flashing before performing the post-measurement calibration and downloading data.
Downloading Data
Insert the badge into the calibrator cavity on the Reader and perform a post-measurement calibration. Press Read on the Reader to download the measurement from the badge. Connect the Reader to AnalyzerPlus to download and review your measurements. Reports can be generated directly within AnalyzerPlus, or data can be exported for further analysis. Stored measurements can also be viewed on the Reader’s display, which can hold approximately 768 hours of data from multiple NoiseBadges.
Applications
The NoiseBadge Noise Dosimeter is designed for accurate personal noise exposure measurements in demanding environments. While the NoisePen is ideal for general workplace monitoring where a highly durable device is not required, the NoiseBadge is built for tougher conditions where reliability and protection are essential. It measures all key parameters, including LAeq, LEP,d, % Dose, and TWA, to provide a complete picture of a worker’s daily noise exposure.
Construction Noise
The NoiseBadge is ideal for monitoring personal noise exposure on construction and demolition sites where instruments are exposed to impacts, dust and vibration. Its robust aluminium casing protects the microphone and components from damage, ensuring accuracy even in harsh conditions. The compact, cable-free design allows workers to move freely while measurements are taken automatically throughout their shift. Results can be downloaded to our licence free AnalyzerPlus software for analysis and reporting.
Victoria Carpets –
We purchased a Pulsar noise dosemeter badge and supporting instrumentation last year along with a familiarisation Noise Awareness training day. The equipment is certainly robust, unobtrusive and ‘user friendly’ and provides a real time analysis of workplace noise. The noise measuring equipment and service furnished by Pulsar Instruments plc has proved to be first class and I would provide an unequivocal recommendation to anyone considering the introduction of this noise management hardware/software. Some of the credit for the Company award of OHSAS 18001 accreditation last year must be directed at Pulsar due to the favourable observations made by the external auditor on the management of noise at work. Thank you for your impartial guidance and advice and for providing a cost effective system which proves beyond any doubt that we can defend any allegations of poor workplace noise management.
ZSL (Whipsnade Zoo) WT Partnership (UK and Europe) –
Pulsar Model 22 noise dosebadge system is an all singing, all dancing system that is genuinely robust and does exactly as promised. I am happy to endorse this product for any environment where one would allow people to work.
English National Opera –
The subject of the long term effects of noise for performing arts professionals has always been sensitive and difficult to assess. At English National Opera, we have been very aware of this situation and in 2004 decided we needed arobust, reliable and unobtrusive system that would allow us to gain a greater understanding of the typical personal noise exposure levels received by members of our orchestra, chorus, stage performers, technicians and other staff. Given that the music and performance dynamics change from production to production, we needed to incorporate these differences into our noise control plan. We invested in the Pulsar Instruments Plc Model 22 Noise Dosemeter Badge System that consists of small, robust and lightweight dosimetry units that attach comfortably to the shoulder of the employee being monitored. After each session this information is then communicated to the reader unit where we can easily view the essential measurement information. We then have the option of downloading each group of measurements to a computer for further analysis and reporting. The time histories of the noise levels are very useful for determining when the main exposure levels occur and which members of staff are most affected. This method of capturing data has provided us with valuable information enabling us to assess and then investigate ways of minimising the risks from noise exposure. When routine verification of the equipment is required we simply contact Pulsar Instruments to arrange the prompt service and recalibration our dose Badge system.
